If you want to add text to several cells of a column, for example an abbreviation or a code, you can use our "Insert text" command.
Command "Insert Text"
Workflow "Insert text"
- Select the desired cells in which you want to insert text
- Click the "Insert text" command in the "Tables utilities" panel of the Revit ribbon
- In the dialog box that opens, enter your text and the corresponding position
- Confirm the dialog with OK

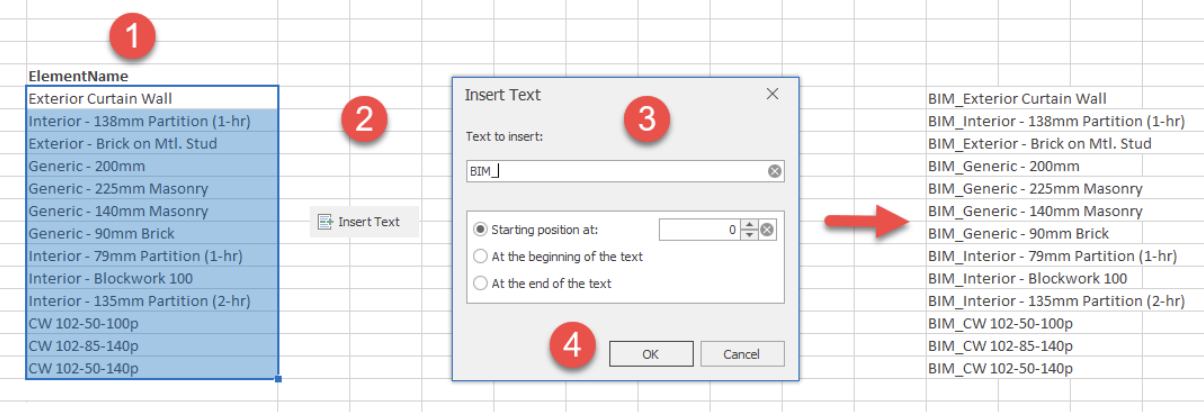

Workflow "Insert Text"
Note: You can search and replace text with the standard "Find and Replace" command (CTRL+F) if an abbreviation also needs to be removed. To do so, you can use the "Rename Elements" command - or simply via the "ElementName" feature parameter (see also "Feature Parameters")
Status: 09.08.2023
